Collar line

UAM 02

Collar bones and label appl. setter

40

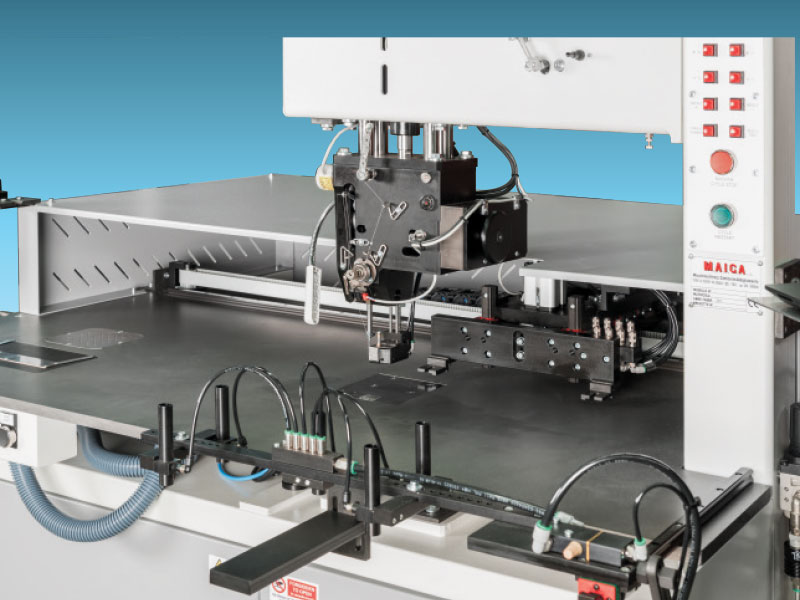

The automated unit UAM 02 with its patented MAICA sewing head was created for smaller applications. This machine can attach up to 4 labels on the four sides and can also attach the right and the left side of the collar bone.
They are easy to install as it only needs a plate for the first one, and a vacuum system for the second one.
The stacker to finish the process guarantees a high productivity.
This machine is entirely controlled by the computer, which allows us to act directly from Italy if a problem is detected using only the Wi-Fi.
The new jigs can be easily changed and have minimum costs.

Techincal sheet
UAM 02
Technical features
Production3000 labels/day
Production2000 Collar Bones/day
Electrical Supply380 V + N
Pneumatic Supply7 Bar
Air Consumption3 l/pc
Packing170x145x190h cm
Weight560 Kg
