Collar line

1006

Collar pressing machine

40

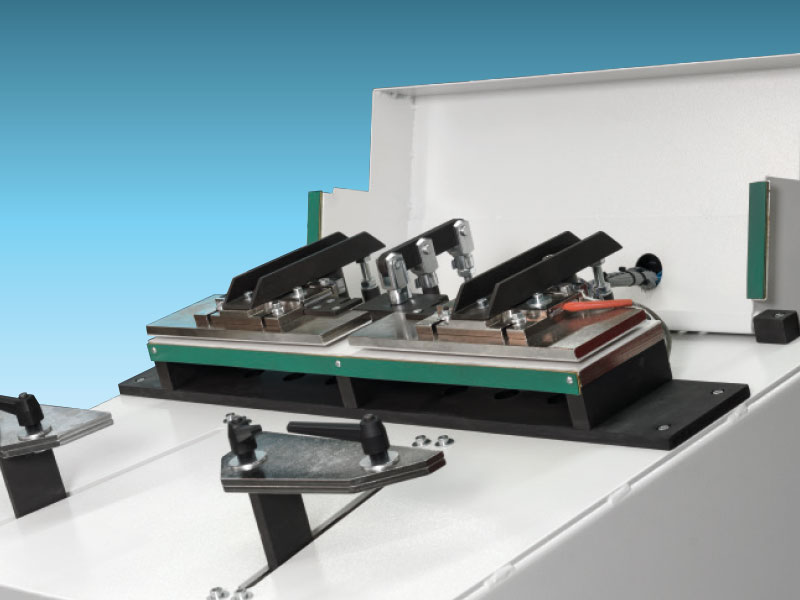

Unit 1006 allows a perfect ironing of any type of collar, thanks to a patented system based on moulds and counter moulds, easy to install and at minimum costs. The machine operates with a double pressing system and a PLC to set the right time and temperature. The pressing plates are covered with a special rubber to avoid shiny effects on the collars, especially on the
dark colours. A thermostatic system regulates the temperature of both upper and lower pressing plates, ensuring an even heating of the collar at the highest quality result possible.

Techincal sheet
1006
Technical features
Production 200 pcs/h
Electrical Supply 220 V + 50 Hz
Electrical Power 1.2 Kw
Pneumatic Supply 6 Bar
Air Consumption 5 l/pc
Packing 100x90x165h cm
Weight 170 Kg
