Front placket line


Front pressing machine

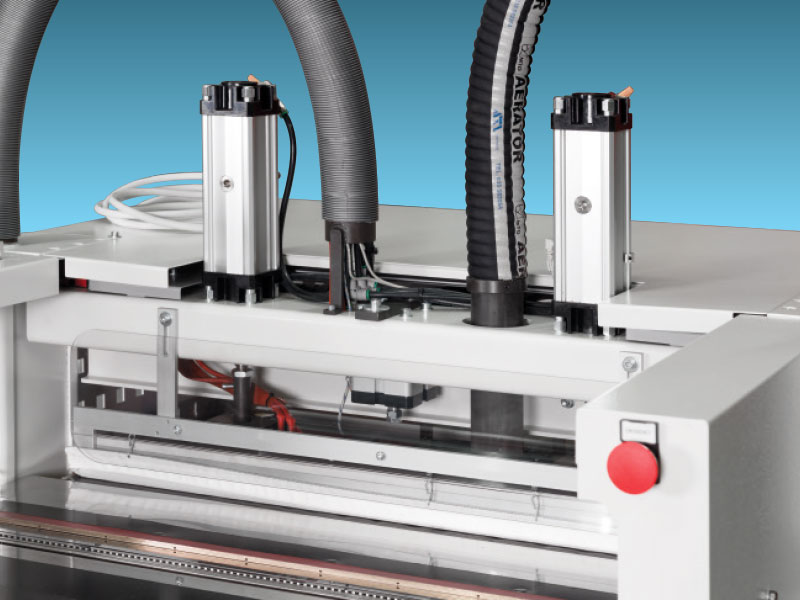

The 1005 unit will fold front and half sleeves, using a vacuum and a pressing system which allow complete precision on the entire length of the crease.
After placing the piece with the help of references points, the vacuum system will hold it in order for the operator to fold perfectly the remaining part. Please note that an adhesive system can be added to the machine, if needed. Then, a blowing system will help sending the shirt under the pressing plates for the creasing part. The width can be adjusted from 18mm to 70mm as well as the length, that goes up to 900mm.
The cleaning of the suction plates is fast and easy. The machine is also equipped with a stacker at the back, which helps the operator to not waste time after each cycle.

Techincal sheet
Technical features
Production 300 pcs/h
Electrical Power 6 Kw
Electrical Supply 380V 50Hz
Pneumatic Supply 7 Bar
Air Consumption 20 l/pc
Packing 140x145x180h cm
Weight 443 Kg
