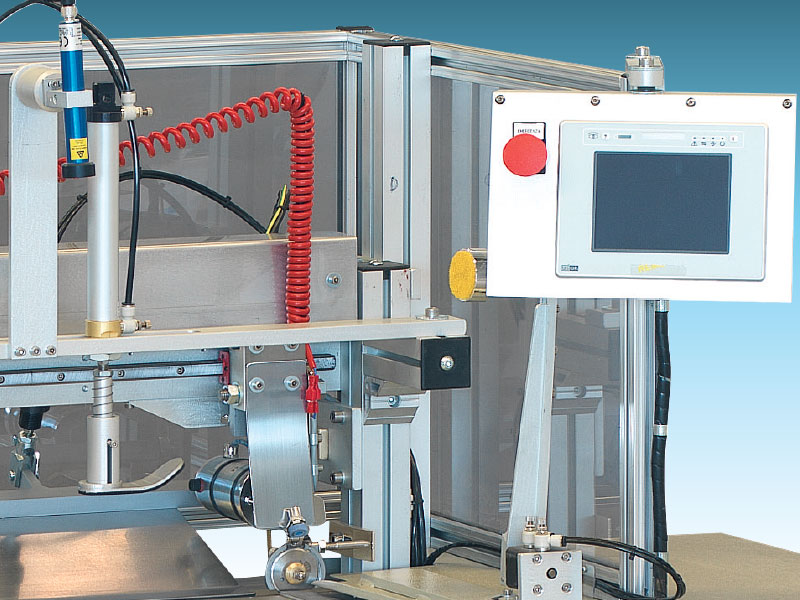

Unit 1060 is a unique machine that offers ultimate precision when it comes to trim the centre of striped or plaid shirts.
In fact, the machine centres the front panel, the buttonholes of the button side, with the help of lasers which
allow a perfect placement for perfect alignment. The cut is made with a cobalt blade cutter.
The 1060 is equipped with a stacker at the back to pile up the second half that the operator has to trim in a second time.
Working capacity: the machine can trim a piece that goes up to 950mm in length, 480mm in width and equalize it up to 100mm in height.
| Technical features | |
|---|---|
| Production | 200 pcs/h |
| Electrical Supply | 380V 50Hz |
| Electrical Power | 2 Kw |
| Pneumatic Supply | 7 Bar |
| Air Consumption | 16 l/pc |
| Packing | 220x115x175h cm |
| Weight | 480 Kg |
