Front placket line

MA 06

Button indexer

40

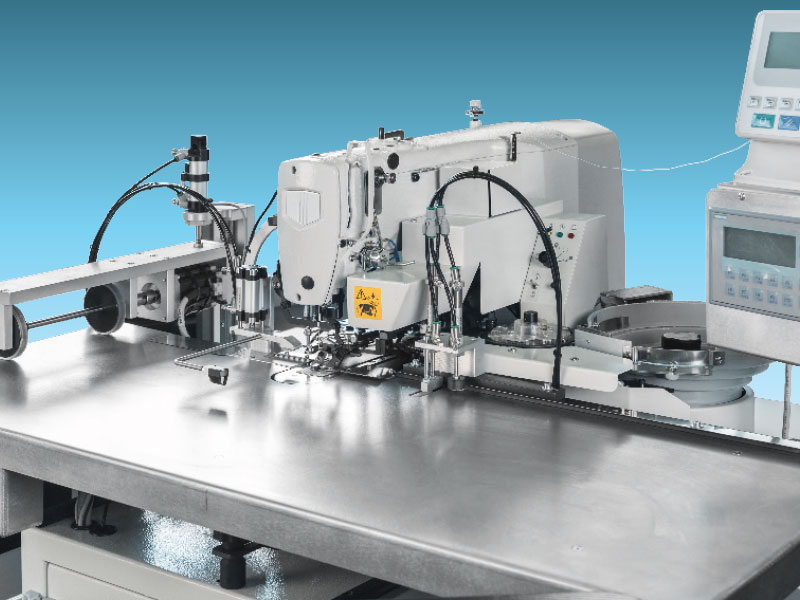

The MA 06 model was made to conduct the button sewing operation faster than ever, thanks to its vacuum system that makes the placement and alignment of the fabric extremely easy. The machine continually sews the buttons with the help of an auto-moving system, allowing the operator to work on more than one machine at the same time.
A program, accessible through a touch screen, has been added to allow to have different sized shirts and also different gaps between the buttonholes on one shirt. These options are possible thanks to a motorised conveyor feeding the machine with the shirt.
An automatic stacker at the end of the operation collects all the finished shirts.

Techincal sheet
MA 06
Technical features
Production 200 - 250 shirts/h
Electrical Supply 220 V + 50 Hz
Electrical Power 500 W
Pneumatic Supply 6 Bar
Air Consumption 1 nl/min
Packing 135x145x180h cm
Weight 276 Kg
